THE FLUTES Ionian Array

Name: THE FLUTES Ionian Array
SKU: 19290
Availability: InStock

$3,390.00 – $7,750.00

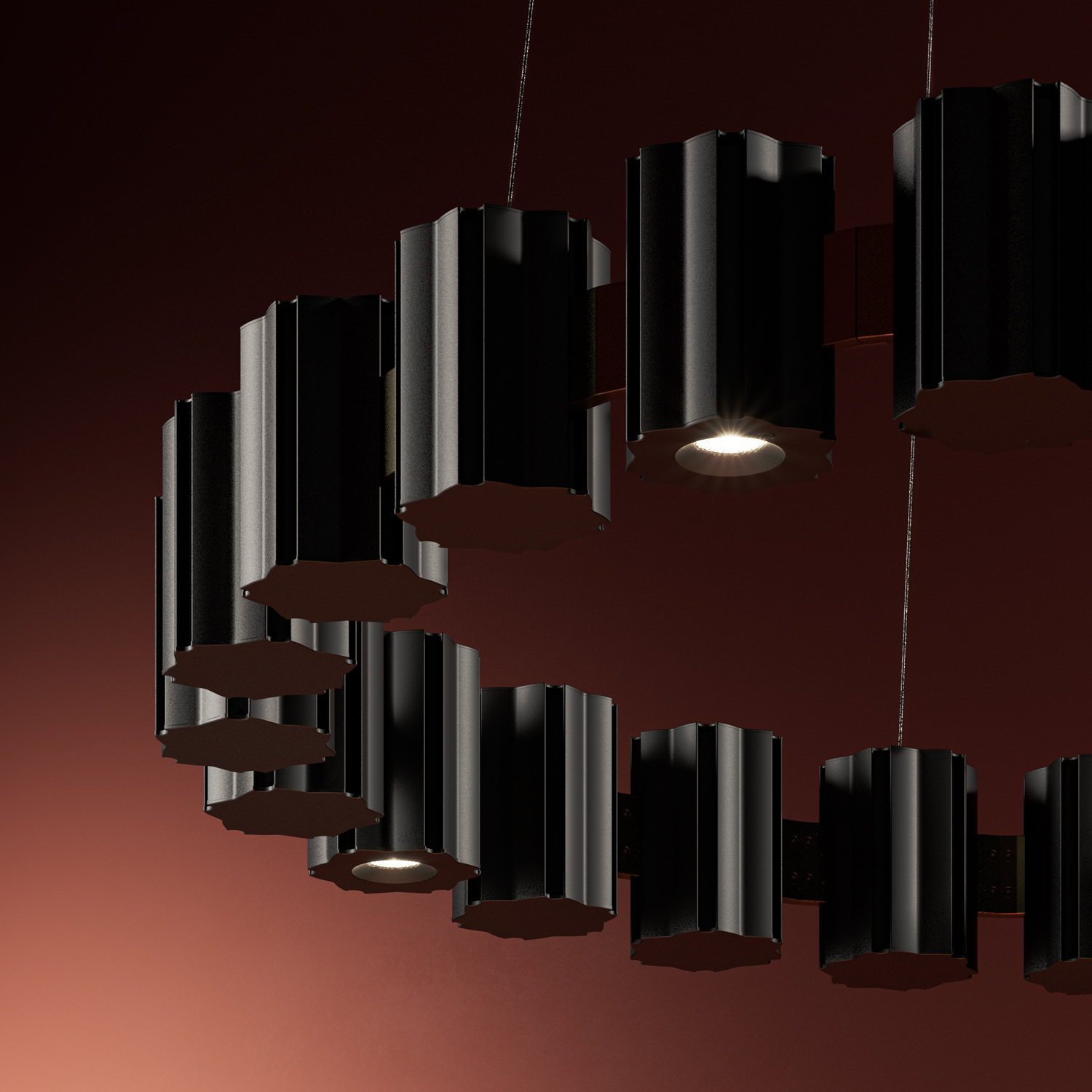

THE FLUTES: IONIAN Array connects radially to create a modern interpretation of the classic chandelier. Solid brass connector accessories are available in multiple finishes, and extrusion lengths can be customized for a made-to-fit installation. THE FLUTES utilize LED modules set into channeled extrusions, allowing light to diffuse above and below for direct and indirect illumination.

Custom lengths, finishes, and arrangements are available. Please contact us.

4-6 Week Typical Lead Time*
*Lead time subject to change based on order and stock quantities.

Pricing applicable to United States and Canada only.
Shipping not included for Alaska, Hawaii, and Canada.

Size	Size ? 24 in 36 in This is the nominal size of the fixture. This is generally the total length, or longest dimension, in inches.
Length	Length ? 4 IN 8 IN This is the nominal length of the fixture. For custom lengths, please contact our team.
Color / Finish	Color / Finish ? Satin Aluminum Satin Black Satin Brass Contact us for finish samples or custom options.
Accessory Finish	Accessory Finish ? Black Oxide Satin Brass This is the finish of an optional accessory to accompany your light fixture.
Color Temperature	Color Temperature ? 2700K 3000K 3500K 4000K
Beam Angle	Beam Angle ? 21° 36° 50° (Recommended) Higher values offer wider, more diffused beams of light for ambient settings. Lower values offer a more concentrated spotlight effect for task lighting.
Hexagonal Louver (Optional)	Hexagonal Louver (Optional) ? Don't Include Include -
Power Supply	Power Supply ? R. Standard Remote 120-277V \| 0-10V Dimming R. Standard Remote 120-277V \| 2-Wire/TRIAC/Forward-Phase/ELV Dimming -
Other Features	Other Features ? Only Downlight Uplight & Downlight Powered Together Unique features for this product. Clear

LIGHT QUALITY

90 CRI

LED LIFESPAN

50,000 hrs, L80

BODY MATERIAL

Aluminum, PMMA

CERTIFICATIONS

cUL, UL, CE, Title 24

WATTAGE & LUMENS

24 IN – 48W, 0-5200LM, Direct (4 Modules) & Indirect (4 Modules) 24 IN – 24W, 0-2600LM, Direct Only (4 Modules) 36 IN – 72W, 0-7800LM, Direct (6 Modules) & Indirect (6 Modules) 36 IN – 36W, 0-3900LM, Direct Only (6 Modules)

WEIGHT

4 IN x 24 IN – 6 lbs 8 IN x 24 IN – 9.5 lbs 4IN x 36 IN – 9 lbs 8 IN x 36 IN – 14 lbs

MOUNTING

Mounted to ceiling using #8 wood screw

CERTIFICATIONS

cUL, UL, CE, Title 24

DROP HEIGHT

MIN. 30" | MAX. 115"

THE FLUTES IES FILES

THE FLUTES IONIAN LINE DRAWINGS

THE FLUTES IONIAN ARRAY INSTALLATION GUIDE | REMOTE

REQUEST 3D FILES

MEDIA KITS
