THE FLUTES Lydian Array

Name: THE FLUTES Lydian Array
SKU: 19280
Availability: InStock

$3,070.00 – $4,830.00

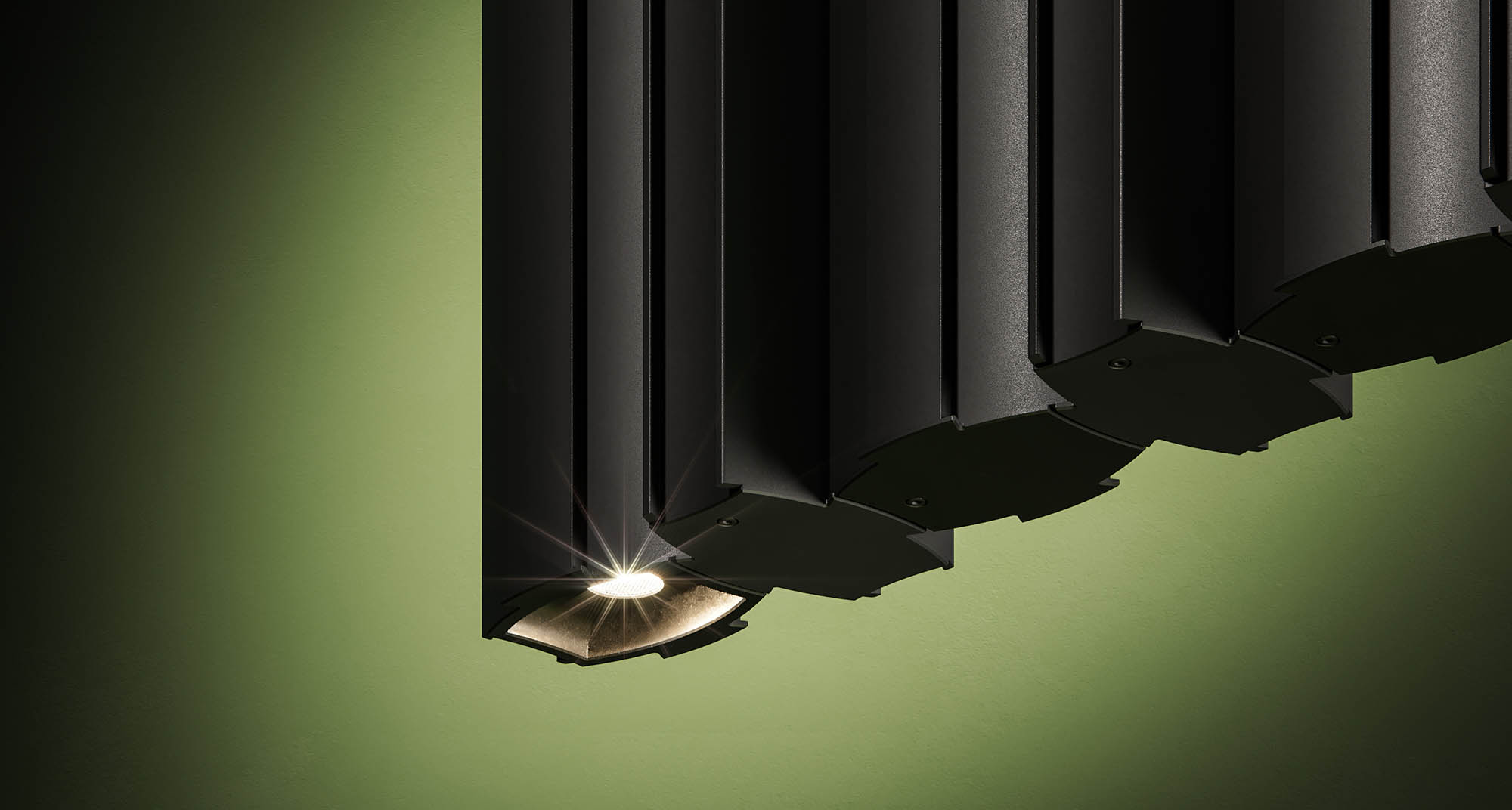

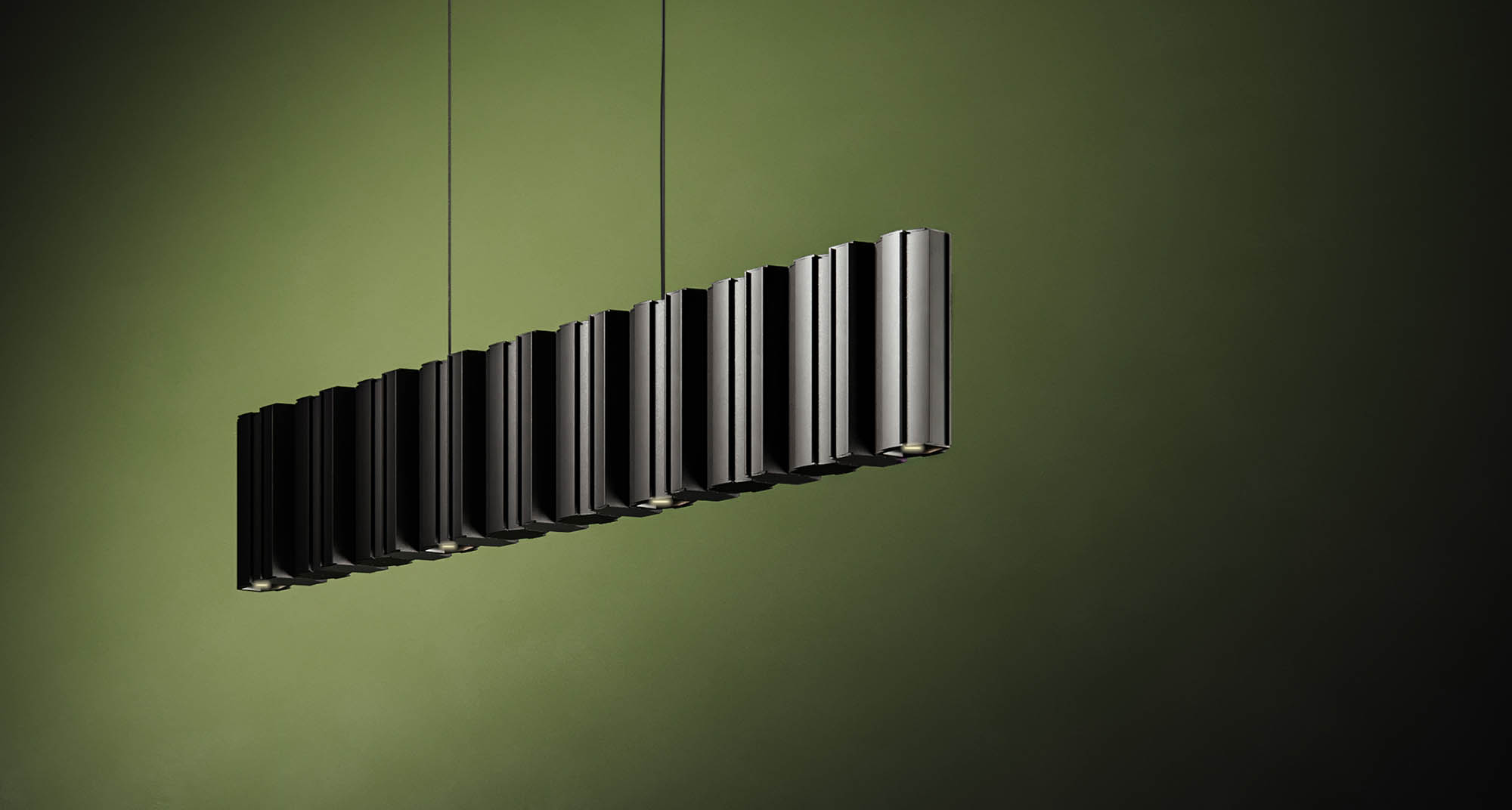

THE FLUTES: LYDIAN Array creates linear installations of light using LYDIAN extrusions. Aluminum bodies connect sequentially and at 90° angles for size and shape customization. THE FLUTES utilize LED modules set into channeled extrusions that diffuse light above or below for direct and indirect illumination.

Custom lengths, finishes, and arrangements are available. Please contact us.

4-6 Week Typical Lead Time*
*Lead time subject to change based on order and stock quantities.

Pricing applicable to United States and Canada only.
Shipping not included for Alaska and Hawaii.

Size	Size ? 48 in 62 in This is the nominal size of the fixture. This is generally the total length, or longest dimension, in inches.
Color / Finish	Color / Finish ? Satin Aluminum Satin Black Satin Brass Contact us for finish samples or custom options.
Color Temperature	Color Temperature ? 2700K 3000K 3500K 4000K
Beam Angle	Beam Angle ? 21° 36° 50° (Recommended) Higher values offer wider, more diffused beams of light for ambient settings. Lower values offer a more concentrated spotlight effect for task lighting.
Power Supply	Power Supply ? R. Standard Remote 120-277V \| 0-10V Dimming R. Standard Remote 120-277V \| 2-Wire/TRIAC/Forward-Phase/ELV Dimming -
Hexagonal Louver (Optional)	Hexagonal Louver (Optional) ? Don't Include Include -
Other Features	Other Features ? Only Downlight Uplight & Downlight Powered Together Unique features for this product. Clear

LIGHT QUALITY

90 CRI

LED LIFESPAN

50,000 hrs, L80

BODY MATERIAL

Aluminum, PMMA

CERTIFICATIONS

cUL, UL, CE, Title 24

WATTAGE & LUMENS

48 IN – 42W, 0-4550LM, Direct (4 Modules) & Indirect (3 Modules) 48 IN – 24W, 0-2600LM, Direct Only (4 Modules) 62 IN – 48W, 0-5200LM, Direct (5 Modules) & Indirect (3 Modules) 62 IN – 30W, 0-3250LM, Direct Only (5 Modules)
